Spring AI Note

May 29, 2025 / Administrator / 0阅读 / 0评论/ 分类: LLM

Reference

https://spring.io/projects/spring-ai

https://docs.spring.io/spring-ai/reference/

Concept

temperature & top_p

temperature

总所周知，在调用 LLM 的时候，如果想让模型的生成结果更加多样化，可以通过调高 top_p 或者 temperature 来实现，反之，如果调低这两个参数，则生成的结果会更加倾向同质化，总之，两种方式的应用场景不同。

首先，我们来看下 temperature。

我们知道在物理世界中，温度越高的环境，熵越大，对应到概率世界中，熵越大，概率的不确定性越大，也就是概率分布越不集中，这就是第一种情况，

而当温度越低，熵越小，概率分布就越集中，这就是第二种情况。

因此，在LLM中，temperature的值在 0 and 2之间，默认值是1。

temperature的值越大，make the output more random；temperature的值越小，make the output more focused and deterministic.

使用场景：

高 temperature适合诗歌生成、故事创作等需要多样性的场景；

低 temperature适合事实性回答（如 QA 系统）、代码生成等需高准确性的任务

接下来，我们来看下 temperature的值对场景影响的原理：

一只猫在 _ ，下一个token有以下几个，以及对应的概率：

玩 0.5
吃 0.3
跑 0.1

如果这时设置的temperature的值较大，比如2，就会使用原始值，除以temperature，然后在得到的结果如下：

玩 0.25
吃 0.15
跑 0.05

可以看到，3个选项之间，差距从原来的0.2，变成了现在的0.1，差距变小了。如果将他们的概率画成一条曲线，就会发现曲线平滑，即概率分布变得更为平滑，即原本评分很低的字与评分很高的字在计算得到的概率上变得相近，这样小概率的字被选中的机会就与其他字相当，从而使得输出结果更加多样化。

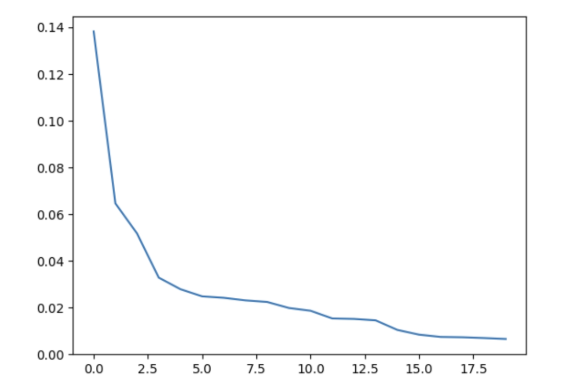

曲线如下：

如果这时设置的temperature的值较大，比如0.5，就会使用原始值，除以temperature，然后在得到的结果如下：

玩 1
吃 0.6
跑 0.2

可以看到，3个选项之间，差距从原来的0.2，变成了现在的0.4，差距变大了。如果将他们的概率画成一条曲线，就会发现概率分布会变得更加锐利，评分高的字的最终概率会更高，被选中的可能性也随之增加，导致输出结果更加一致。

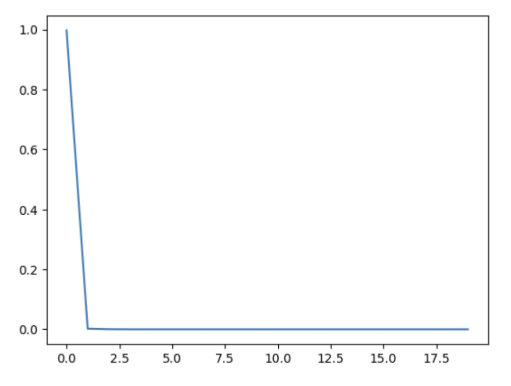

曲线如下：

top_p

top_p 是大型语言模型 (LLM) 中用于控制文本生成多样性和质量的另一个重要参数，与 temperature 密切相关，但工作方式不同。它被称为“核心采样”（Nucleus Sampling）的阈值。

top_p的值，在0到1之间，默认值是1。

工作原理：

概率排序： 在生成每个词（token）时，LLM 会计算出词汇表中所有可能词的概率分布。top_p 不直接修改这些概率，而是影响选择哪些词。
累积概率： LLM 将所有可能的下一个词按照概率从高到低排序，然后累加这些概率。
阈值截断： 当累积概率达到或超过 top_p 设置的值时，停止累加。
候选词集合： 只有那些累积概率达到 top_p 阈值的词才会被保留作为候选词。
采样： LLM 从这个候选词集合中（根据它们的原始概率）进行采样，选择下一个词。

举例说明：

假设词汇表中有 10 个词，模型计算出每个词作为下一个词的概率如下：

词	概率	累积概率 (假设 top_p = 0.9)
A	0.3	0.3
B	0.25	0.55
C	0.2	0.75
D	0.1	0.85
E	0.06	0.91
F	0.04	0.95
G	0.02	0.97
H	0.01	0.98
I	0.01	0.99
J	0.01	1.00

如果 top_p = 0.9：

累积概率在词 E 处超过了 0.9。
因此，只有 A、B、C、D 和 E 这五个词会被考虑作为下一个词的候选。
模型会根据这五个词的原始概率（0.3, 0.25, 0.2, 0.1, 0.06）进行加权随机选择。

如果 top_p = 0.5：

累积概率在词 B 处超过了 0.5。
只有 A 和 B 会被考虑。

作用和影响：

控制多样性： top_p 通过限制候选词的数量来控制生成文本的多样性。
- top_p 值越小，候选词越少，生成的结果越确定、越集中于高概率词，多样性越低。
- top_p 值越大，候选词越多，生成的结果越多样、越可能出现低概率但有趣的词，多样性越高。
避免低质量输出： 相比于只使用 temperature，top_p 通常能更好地避免生成无意义或重复的文本。因为它直接截断了低概率的尾部，防止模型选择那些概率极低的词。
与 top_p 和 temperature 经常一起使用。
- temperature 影响所有词的概率分布（使分布更平坦或更尖锐）。
- top_p 在 temperature 调整后的概率分布基础上，选择一个子集的词。
- 通常的做法是，先用 temperature 粗调多样性，再用 top_p 进行精细控制。

总结：

temperature，他影响了所有候选token的概率，也即影响了概率分布的形状（更平坦或者更锐利）

top_p，控制了子集的大小，是一个截断的过程。

Token Size limit

Token计算规则：1个英文单词≈1.3 tokens，1个汉字≈2 tokens

token，主要由message tokens和completion tokens组成。

在大模型应用中，Message Tokens（输入Tokens）和Completion Tokens（输出Tokens）是两类核心的Token类型，分别对应模型处理的输入内容和生成内容。以下是两者的区别解析及示例说明：

一、定义与作用对比

类别	Message Tokens	Completion Tokens
定义	用户输入的请求内容	模型生成的响应内容
组成	系统提示词、用户问题、历史对话等	模型根据输入生成的回答内容
计算阶段	Prefill阶段（预计算KV缓存）	Decoding阶段（逐Token生成）
典型示例	`SystemMessage`、`HumanMessage`	`AIMessage`、`ToolMessage`
费用影响	影响请求成本（按输入Token计费）	影响生成成本（按输出Token计费）

Official Sample

https://github.com/danvega/awesome-spring-ai

https://docs.spring.io/spring-ai/docs/1.0.x/api/

构建start-demo

https://docs.spring.io/spring-ai/reference/api/chatclient.html

pom.xml中，增加以下内容：

 <properties>
        <java.version>17</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    </properties>


 <repositories>
        <repository>
            <id>spring-snapshots</id>
            <name>Spring Snapshots</name>
            <url>https://repo.spring.io/snapshot</url>
            <releases>
                <enabled>false</enabled>
            </releases>
        </repository>
        <repository>
            <name>Central Portal Snapshots</name>
            <id>central-portal-snapshots</id>
            <url>https://central.sonatype.com/repository/maven-snapshots/</url>
            <releases>
                <enabled>false</enabled>
            </releases>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </repository>
    </repositories>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.ai</groupId>
                <artifactId>spring-ai-bom</artifactId>
                <version>1.0.0-SNAPSHOT</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

另外，增加以下依赖：

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.ai</groupId>
            <artifactId>spring-ai-starter-model-openai</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

接下来，在application.yaml中，增加以下配置：

spring:
  application:
    name: start-demo
  ai:
    openai:
      api-key: sk-bdd2ca4b70514c0aa4f4aceb6ecd3b77
      base-url: https://api.deepseek.com
      chat:
        options:
          model: deepseek-chat
      embedding:
        enabled: false

最后，创建一个controller:

package com.wp.startdemo.controller;

import org.springframework.ai.chat.client.ChatClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/start-demo/my")
public class MyController {

    private final ChatClient chatClient;

    public MyController(ChatClient.Builder chatClientBuilder) {
        this.chatClient = chatClientBuilder.build();
    }

    @GetMapping("/ai")
    public String generation(String userInput) {
        return this.chatClient.prompt()
                .user(userInput)
                .call()
                .content();
    }
}

逻辑和概念梳理

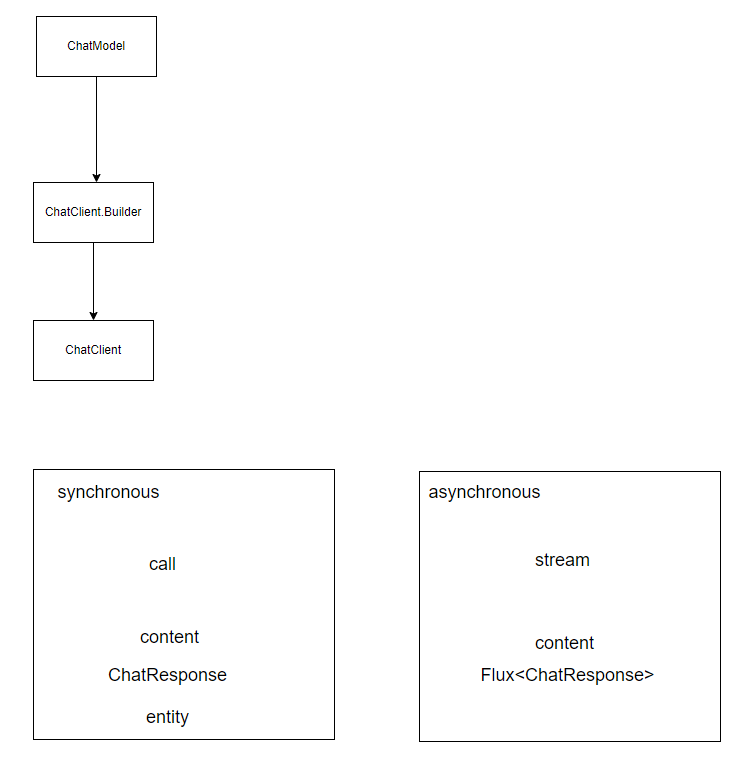

ChatClient

接下来，我们来看下ChatClient，关键的方法：prompt

 ChatClientRequestSpec prompt();

 ChatClientRequestSpec prompt(String content);

 ChatClientRequestSpec prompt(Prompt prompt);

这个prompt方法，返回ChatClientRequestSpec对象，这个ChatClientRequestSpec，常用的几个方法如下：

system
user
messages
options
call 、Stream
advisors

Advisors

The Advisors API provides a flexible and powerful way to intercept, modify, and enhance AI-driven interactions in your Spring applications.

A common pattern when calling an AI model with user text is to append or augment the prompt with contextual data.

This contextual data can be of different types. Common types include:

Your own data: This is data the AI model hasn’t been trained on. Even if the model has seen similar data, the appended contextual data takes precedence in generating the response.
Conversational history: The chat model’s API is stateless. If you tell the AI model your name, it won’t remember it in subsequent interactions. Conversational history must be sent with each request to ensure previous interactions are considered when generating a response.

Advisor Configuration in ChatClient

The ChatClient fluent API provides an AdvisorSpec interface for configuring advisors. This interface offers methods to add parameters, set multiple parameters at once, and add one or more advisors to the chain.

interface AdvisorSpec {
    AdvisorSpec param(String k, Object v);
    AdvisorSpec params(Map<String, Object> p);
    AdvisorSpec advisors(Advisor... advisors);
    AdvisorSpec advisors(List<Advisor> advisors);
}

ChatClient.builder(chatModel)
    .build()
    .prompt()
    .advisors(
        new MessageChatMemoryAdvisor(chatMemory),  // CHAT MEMORY
        new QuestionAnswerAdvisor(vectorStore) // RAG
    )
    .user(userText)
    .call()
    .content();

In this configuration, the MessageChatMemoryAdvisor will be executed first, adding the conversation history to the prompt. Then, the QuestionAnswerAdvisor will perform its search based on the user’s question and the added conversation history, potentially providing more relevant results.

Chat Memory

The interface ChatMemory represents a storage for chat conversation history. It provides methods to add messages to a conversation, retrieve messages from a conversation, and clear the conversation history.

There are currently three implementations, InMemoryChatMemory, CassandraChatMemory and Neo4jChatMemory, that provide storage for chat conversation history, in-memory, persisted with time-to-live in Cassandra, and persisted without time-to-live in Neo4j correspondingly.

To create a CassandraChatMemory with time-to-live:

CassandraChatMemory.create(CassandraChatMemoryConfig.builder().withTimeToLive(Duration.ofDays(1)).build());

The following advisor implementations use the ChatMemory interface to advice the prompt with conversation history which differ in the details of how the memory is added to the prompt

MessageChatMemoryAdvisor : Memory is retrieved and added as a collection of messages to the prompt
PromptChatMemoryAdvisor : Memory is retrieved and added into the prompt’s system text.
VectorStoreChatMemoryAdvisor : The constructor VectorStoreChatMemoryAdvisor(VectorStore vectorStore, String defaultConversationId, int chatHistoryWindowSize, int order) This constructor allows you to:
1. Specify the VectorStore instance used for managing and querying documents.
2. Set a default conversation ID to be used if none is provided in the context.
3. Define the window size for chat history retrieval in terms of token size.
4. Provide system text advice used for the chat advisor system.
5. Set the order of precedence for this advisor in the chain.

The VectorStoreChatMemoryAdvisor.builder() method lets you specify the default conversation ID, the chat history window size, and the order of the chat history to be retrieved.

A sample @Service implementation that uses several advisors is shown below.

import static org.springframework.ai.chat.client.advisor.AbstractChatMemoryAdvisor.CHAT_MEMORY_CONVERSATION_ID_KEY;
import static org.springframework.ai.chat.client.advisor.AbstractChatMemoryAdvisor.CHAT_MEMORY_RETRIEVE_SIZE_KEY;

@Service
public class CustomerSupportAssistant {    private final ChatClient chatClient;    public CustomerSupportAssistant(ChatClient.Builder builder, VectorStore vectorStore, ChatMemory chatMemory) {        this.chatClient = builder            .defaultSystem("""                    You are a customer chat support agent of an airline named "Funnair". Respond in a friendly,                    helpful, and joyful manner.                    Before providing information about a booking or cancelling a booking, you MUST always                    get the following information from the user: booking number, customer first name and last name.                    Before changing a booking you MUST ensure it is permitted by the terms.                    If there is a charge for the change, you MUST ask the user to consent before proceeding.                    """)            .defaultAdvisors(                    new MessageChatMemoryAdvisor(chatMemory), // CHAT MEMORY
                    new QuestionAnswerAdvisor(vectorStore), // RAG
                    new SimpleLoggerAdvisor())            .defaultFunctions("getBookingDetails", "changeBooking", "cancelBooking") // FUNCTION CALLING
            .build();    }    public Flux<String> chat(String chatId, String userMessageContent) {        return this.chatClient.prompt()                .user(userMessageContent)                .advisors(a -> a                        .param(CHAT_MEMORY_CONVERSATION_ID_KEY, chatId)                        .param(CHAT_MEMORY_RETRIEVE_SIZE_KEY, 100))                .stream().content();    }}

Logging

The SimpleLoggerAdvisor is an advisor that logs the request and response data of the ChatClient. This can be useful for debugging and monitoring your AI interactions.

To enable logging, add the SimpleLoggerAdvisor to the advisor chain when creating your ChatClient. It’s recommended to add it toward the end of the chain:

ChatResponse response = ChatClient.create(chatModel).prompt()
        .advisors(new SimpleLoggerAdvisor())
        .user("Tell me a joke?")
        .call()
        .chatResponse();

To see the logs, set the logging level for the advisor package to DEBUG:

logging.level.org.springframework.ai.chat.client.advisor=DEBUG

Add this to your application.properties or application.yaml file.

You can customize what data from AdvisedRequest and ChatResponse is logged by using the following constructor:

SimpleLoggerAdvisor(
    Function<AdvisedRequest, String> requestToString,
    Function<ChatResponse, String> responseToString
)

Example usage:

SimpleLoggerAdvisor customLogger = new SimpleLoggerAdvisor(
    request -> "Custom request: " + request.userText,
    response -> "Custom response: " + response.getResult()
);

This allows you to tailor the logged information to your specific needs.

Structured Output Converter

https://docs.spring.io/spring-ai/reference/api/structured-output-converter.html

StructuredOutputConverter

Generating structured outputs from Large Language Models (LLMs) using generic completion APIs requires careful handling of inputs and outputs. The structured output converter plays a crucial role before and after the LLM call, ensuring the desired output structure is achieved.

Before the LLM call, the converter appends format instructions to the prompt, providing explicit guidance to the models on generating the desired output structure. These instructions act as a blueprint, shaping the model’s response to conform to the specified format.

After the LLM call, the converter takes the model’s output text and transforms it into instances of the structured type. This conversion process involves parsing the raw text output and mapping it to the corresponding structured data representation, such as JSON, XML, or domain-specific data structures.

public interface StructuredOutputConverter<T> extends Converter<String, T>, FormatProvider {


}

// It combines the Spring Converter<String, T> interface and the FormatProvider interface
public interface FormatProvider {
    String getFormat();
}

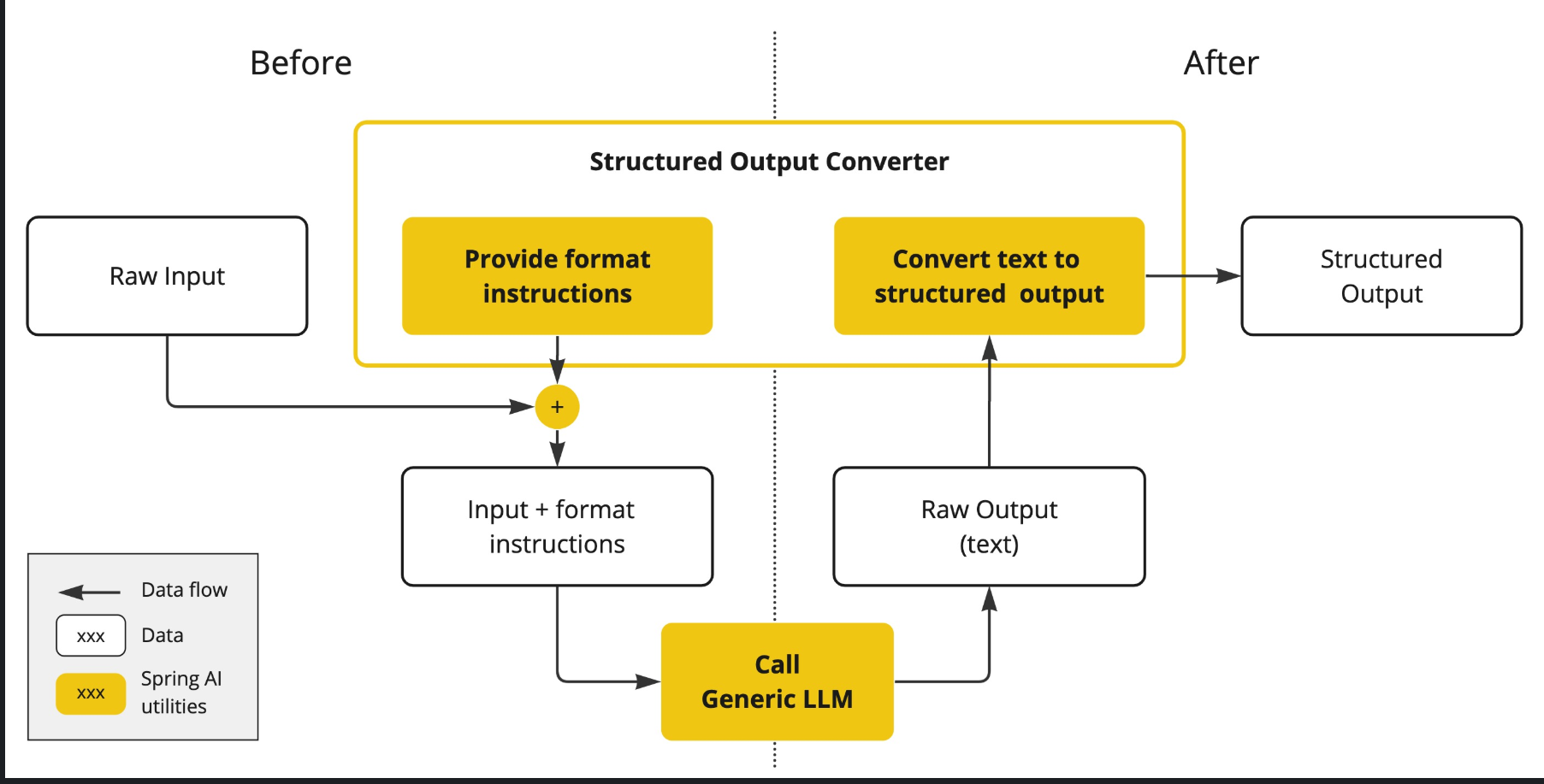

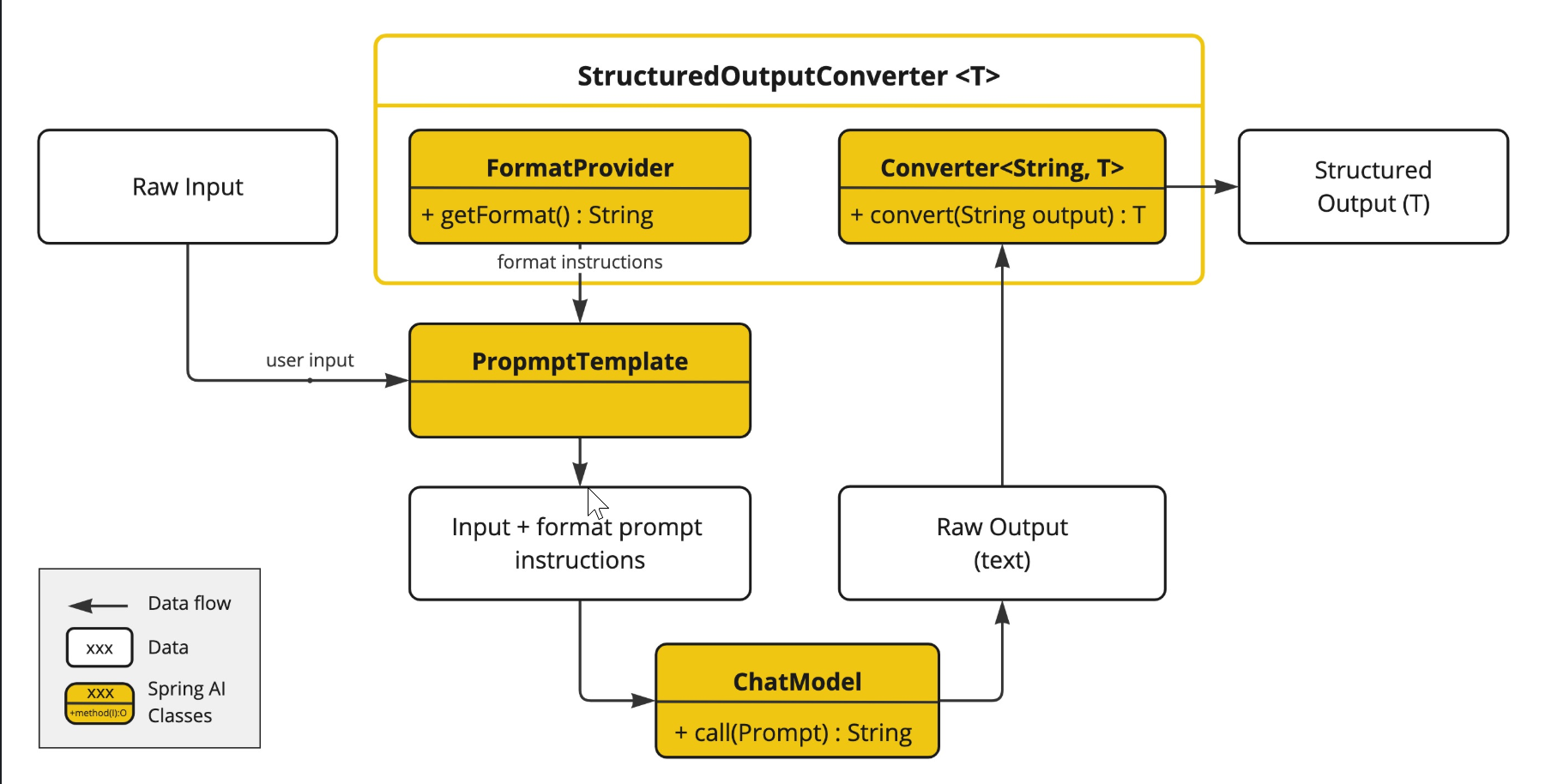

The following diagram shows the data flow when using the structured output API.

The FormatProvider supplies specific formatting guidelines to the AI Model, enabling it to produce text outputs that can be converted into the designated target type T using the Converter. Here is an example of such formatting instructions:

Your response should be in JSON format. The data structure for the JSON should match this Java class: java.util.HashMap Do not include any explanations, only provide a RFC8259 compliant JSON response following this format without deviation.

The format instructions are most often appended to the end of the user input using the PromptTemplate like this:

  StructuredOutputConverter outputConverter = ...
    String userInputTemplate = """
        ... user text input ....
        {format}
        """; // user input with a "format" placeholder.
    Prompt prompt = new Prompt(
       new PromptTemplate(
               this.userInputTemplate,
          Map.of(..., "format", outputConverter.getFormat()) // replace the "format" placeholder with the converter's format.
       ).createMessage());

The Converter<String, T> is responsible to transform output text from the model into instances of the specified type T.

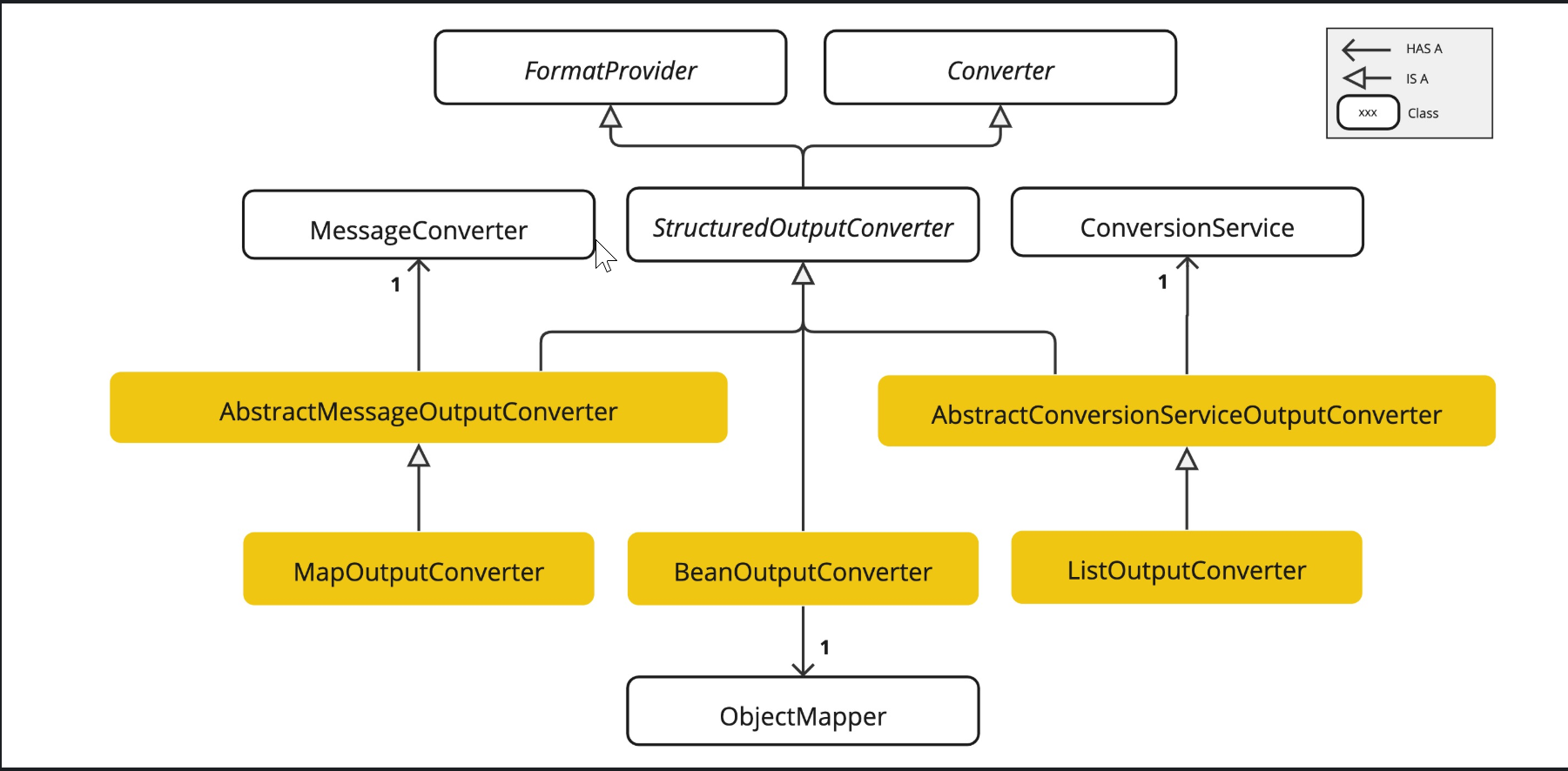

Available Converters

Currently, Spring AI provides AbstractConversionServiceOutputConverter, AbstractMessageOutputConverter, BeanOutputConverter, MapOutputConverter and ListOutputConverter implementations:

Using Converters

Bean Output Converter

Java class Bean

The target record representing actor’s filmography:

record ActorsFilms(String actor, List<String> movies) {
}

Here is how to apply the BeanOutputConverter using the high-level, fluent ChatClient API:

ActorsFilms actorsFilms = ChatClient.create(chatModel).prompt()
        .user(u -> u.text("Generate the filmography of 5 movies for {actor}.")
                    .param("actor", "Tom Hanks"))
        .call()
        .entity(ActorsFilms.class);

or using the low-level ChatModel API directly:

BeanOutputConverter<ActorsFilms> beanOutputConverter =
    new BeanOutputConverter<>(ActorsFilms.class);

String format = this.beanOutputConverter.getFormat();

String actor = "Tom Hanks";

String template = """
        Generate the filmography of 5 movies for {actor}.
        {format}
        """;

Generation generation = chatModel.call(
    new PromptTemplate(this.template, Map.of("actor", this.actor, "format", this.format)).create()).getResult();

ActorsFilms actorsFilms = this.beanOutputConverter.convert(this.generation.getOutput().getText());

Generic Bean Types

Use the ParameterizedTypeReference constructor to specify a more complex target class structure. For example, to represent a list of actors and their filmographies:

List<ActorsFilms> actorsFilms = ChatClient.create(chatModel).prompt()
        .user("Generate the filmography of 5 movies for Tom Hanks and Bill Murray.")
        .call()
        .entity(new ParameterizedTypeReference<List<ActorsFilms>>() {});

or using the low-level ChatModel API directly:

BeanOutputConverter<List<ActorsFilms>> outputConverter = new BeanOutputConverter<>(
        new ParameterizedTypeReference<List<ActorsFilms>>() { });

String format = this.outputConverter.getFormat();
String template = """
        Generate the filmography of 5 movies for Tom Hanks and Bill Murray.
        {format}
        """;

Prompt prompt = new PromptTemplate(this.template, Map.of("format", this.format)).create();

Generation generation = chatModel.call(this.prompt).getResult();

List<ActorsFilms> actorsFilms = this.outputConverter.convert(this.generation.getOutput().getText());

Map Output Converter

The following snippet shows how to use MapOutputConverter to convert the model output to a list of numbers in a map.

Map<String, Object> result = ChatClient.create(chatModel).prompt()
        .user(u -> u.text("Provide me a List of {subject}")
                    .param("subject", "an array of numbers from 1 to 9 under they key name 'numbers'"))
        .call()
        .entity(new ParameterizedTypeReference<Map<String, Object>>() {});

or using the low-level ChatModel API directly:

MapOutputConverter mapOutputConverter = new MapOutputConverter();

String format = this.mapOutputConverter.getFormat();
String template = """
        Provide me a List of {subject}
        {format}
        """;

Prompt prompt = new PromptTemplate(this.template,
        Map.of("subject", "an array of numbers from 1 to 9 under they key name 'numbers'", "format", this.format)).create();

Generation generation = chatModel.call(this.prompt).getResult();

Map<String, Object> result = this.mapOutputConverter.convert(this.generation.getOutput().getText());

List Output Converter

The following snippet shows how to use ListOutputConverter to convert the model output into a list of ice cream flavors.

List<String> flavors = ChatClient.create(chatModel).prompt()
                .user(u -> u.text("List five {subject}")
                            .param("subject", "ice cream flavors"))
                .call()
                .entity(new ListOutputConverter(new DefaultConversionService()));

or using the low-level ChatModel API directly:

ListOutputConverter listOutputConverter = new ListOutputConverter(new DefaultConversionService());

String format = this.listOutputConverter.getFormat();
String template = """
        List five {subject}
        {format}
        """;

Prompt prompt = new PromptTemplate(this.template,
        Map.of("subject", "ice cream flavors", "format", this.format)).create();

Generation generation = this.chatModel.call(this.prompt).getResult();

List<String> list = this.listOutputConverter.convert(this.generation.getOutput().getText());

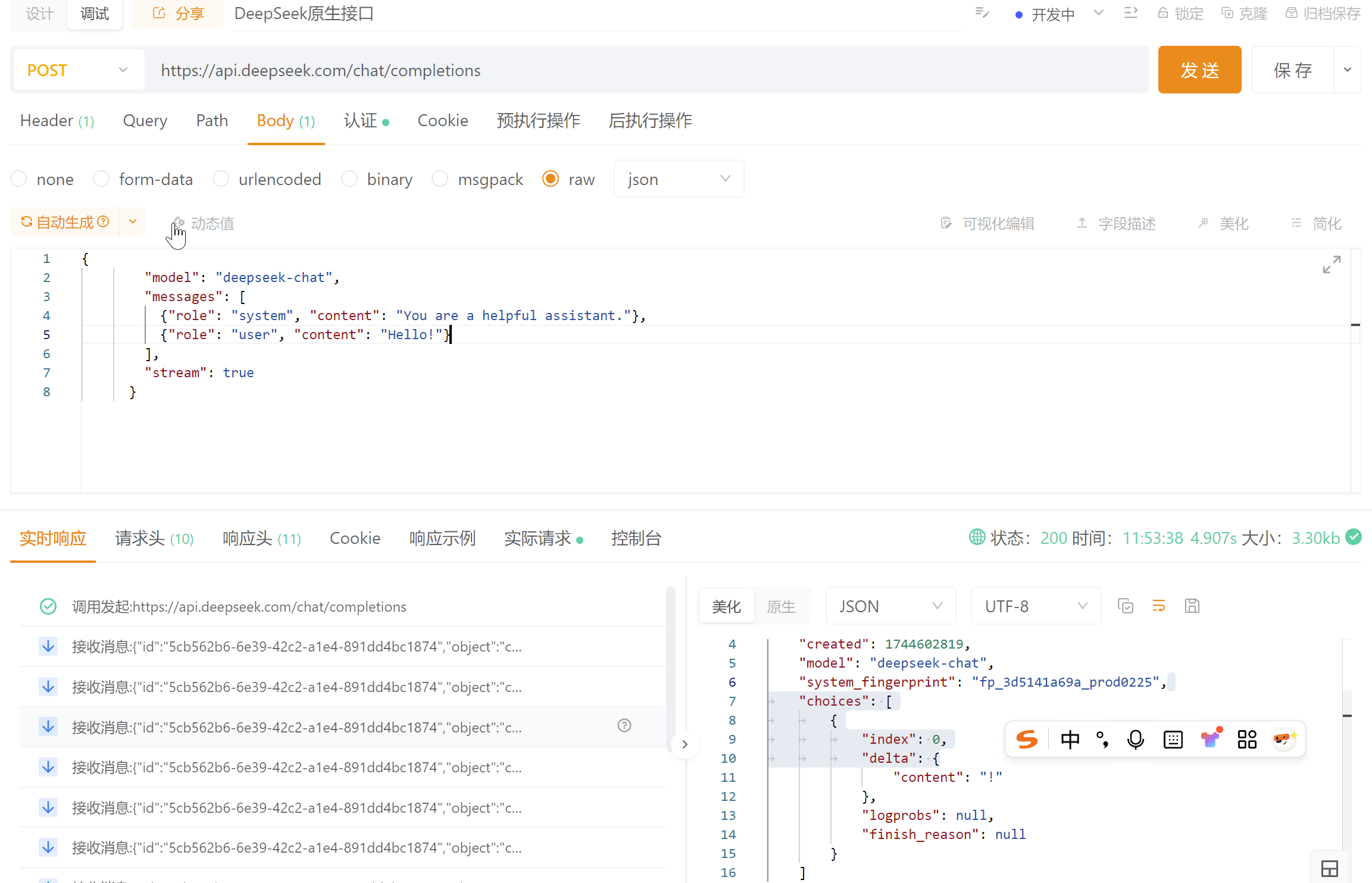

DeepSeek原生接口

响应的格式如下：

{
    "id": "5cb562b6-6e39-42c2-a1e4-891dd4bc1874",
    "object": "chat.completion.chunk",
    "created": 1744602819,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_3d5141a69a_prod0225",
    "choices": [
        {
            "index": 0,
            "delta": {
                "content": "Hello"
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

DeepSeek API的返回结果包含多个核心字段，其含义解析如下：

一、主要响应字段

choices
- 核心字段，包含模型生成的结果数组。每个元素包含：
  - message.content：模型生成的主要文本内容（如回答或代码）
  - message.role：角色标识（如"assistant"）
  - finish_reason：生成终止原因（如"stop"表示正常结束）
  - 推理模型特有字段（如DeepSeek-R1）：
    - model_extra['reasoning_content']：展示模型的思维链推理过程
id
- 本次API调用的唯一标识符，用于日志追踪。
model
- 实际调用的模型名称（如 deepseek-chat或 deepseek-reasoner）。
usage
- 资源消耗统计：
  - total_tokens：本次请求总Token数（输入+输出）
  - prompt_tokens：输入内容占用的Token数
  - completion_tokens：生成内容占用的Token数。

二、特殊场景字段

logprobs（需请求时开启）
- 每个生成Token的概率分布，用于调试生成质量。
error（错误响应）
- 包含错误码和描述（如401表示API Key无效，429表示请求频率超限）。

三、参数关联字段

部分字段与请求参数直接关联：

temperature/top_p：影响 choices内容的随机性（值越高，结果越发散）
max_tokens：限制 choices[0].message.content的文本长度

示例解析

以DeepSeek-R1模型调用为例：

{
  "id": "chatcmpl-xxx",
  "model": "deepseek-reasoner",
  "choices": [{
    "message": {
      "content": "9.11更大",
      "role": "assistant",
      "model_extra": {"reasoning_content": "比较整数部分：9=9，小数部分0.11>0.08..."}
    },
    "finish_reason": "stop"
  }],
  "usage": {"total_tokens": 150, "prompt_tokens": 50, "completion_tokens": 100}
}

此结果中，content为最终答案，reasoning_content展示推理逻辑，usage反映资源消耗。

如需更详细的错误码说明或参数优化建议，可参考官方文档。

流式输出

SSE Protocol

https://developer.mozilla.org/en-US/docs/Web/API/Server-sent_events/Using_server-sent_events

Event stream format

The event stream is a simple stream of text data which must be encoded using UTF-8. Messages in the event stream are separated by a pair of newline characters. A colon as the first character of a line is in essence a comment, and is ignored.

Fields

Each message received has some combination of the following fields, one per line:

event

A string identifying the type of event described. If this is specified, an event will be dispatched on the browser to the listener for the specified event name; the website source code should use addEventListener() to listen for named events. The onmessage handler is called if no event name is specified for a message.

data

The data field for the message. When the EventSource receives multiple consecutive lines that begin with data:, it concatenates them, inserting a newline character between each one. Trailing newlines are removed.

id

The event ID to set the EventSource object's last event ID value.

浏览器用 lastEventId属性读取这个值。一旦连接断线，浏览器会发送一个 HTTP 头，里面包含一个特殊的 Last-Event-ID头信息，将这个值发送回来，用来帮助服务器端重建连接。因此，这个头信息可以被视为一种同步机制。

retry

The reconnection time. If the connection to the server is lost, the browser will wait for the specified time before attempting to reconnect. This must be an integer, specifying the reconnection time in milliseconds. If a non-integer value is specified, the field is ignored.

All other field names are ignored.

Examples

Data-only messages

In the following example, there are three messages sent. The first is just a comment, since it starts with a colon character. As mentioned previously, this can be useful as a keep-alive mechanism if messages might not be sent regularly.

The second message contains a data field with the value "some text". The third message contains a data field with the value "another message\nwith two lines". Note the newline special character in the value.

bashCopy to Clipboard

: this is a test stream

data: some text

data: another message
data: with two lines

Named events

This example sends named events. Each has an event name specified by the event field, and a data field whose value is an appropriate JSON string with the data needed for the client to act on the event. The data field could, of course, have any string data; it doesn't have to be JSON.

bashCopy to Clipboard

event: userconnect
data: {"username": "bobby", "time": "02:33:48"}

event: usermessage
data: {"username": "bobby", "time": "02:34:11", "text": "Hi everyone."}

event: userdisconnect
data: {"username": "bobby", "time": "02:34:23"}

event: usermessage
data: {"username": "sean", "time": "02:34:36", "text": "Bye, bobby."}

Mixing and matching

You don't have to use just unnamed messages or typed events; you can mix them together in a single event stream.

bashCopy to Clipboard

event: userconnect
data: {"username": "bobby", "time": "02:33:48"}

data: Here's a system message of some kind that will get used
data: to accomplish some task.

event: usermessage
data: {"username": "bobby", "time": "02:34:11", "text": "Hi everyone."}

Spring WebFlux 与 SseEmitter

https://blog.csdn.net/mst_sun/article/details/136484357

Spring WebFlux 与 SseEmitter 是两种处理服务器推送事件（SSE）的技术方案，分别基于响应式编程模型和传统同步模型。

以下是两者的核心对比及协作关系：

一、技术定位与实现机制

SseEmitter（基于 Spring MVC）
- 同步阻塞模型：依赖 Servlet 容器，每个 SSE 连接占用一个线程，需开发者手动管理连接池（如维护 ConcurrentHashMap 存储 SseEmitter 对象）。
- 手动协议处理：需显式调用 send()、complete() 等方法推送事件，并通过线程池实现异步推送。
- 适用场景：轻量级实时推送（如聊天消息、监控数据），适合中小并发场景。
Flux（响应式模型）
- 异步非阻塞：基于 Reactor 库，通过 Flux 流处理数据，单线程可管理数千连接，天然支持高并发。
- 自动协议转换：控制器直接返回 Flux<ServerSentEvent>，设置 produces = TEXT_EVENT_STREAM_VALUE 即可自动生成 SSE 格式流，无需手动处理协议细节。
- 适用场景：高吞吐量实时数据流（如日志推送、AI 对话），适合云原生和微服务架构。

二、核心差异对比

维度	SseEmitter	Spring WebFlux
编程模型	同步阻塞（Servlet）	异步非阻塞（Reactor）
连接管理	手动维护连接池，需处理超时、异常	自动管理连接，内置背压控制
协议处理	需手动拼接事件字段（如 `data:`、`id:`）	自动转换 `Flux`为 SSE 格式流
性能	线程数限制，适合低并发	高吞吐量，适合万级并发连接
代码复杂度	高（需异步线程、连接池）	低（声明式 API，代码简洁）

三、协作场景与最佳实践

混合架构中的分工
- WebFlux 主导推送：在需要处理大规模流式数据（如实时日志、IoT 传感器数据）时，优先使用 WebFlux 的 Flux 简化开发。
- SseEmitter 补充控制：若需精细控制单个连接（如按用户 ID 定向推送），可结合 SseEmitter 实现连接与业务逻辑的绑定。
集群环境下的扩展
- SseEmitter 集群方案：需借助 Redis 缓存连接信息，并通过 HTTP 转发请求到对应服务节点。
- WebFlux 原生扩展：依托响应式背压和非阻塞 I/O，天然适合分布式环境，减少中间件依赖。

典型代码示例

SseEmitter（Spring MVC）
java
复制

@GetMapping("/sse")
public SseEmitter streamData() {
  SseEmitter emitter = new SseEmitter();
  executorService.execute(() -> {
      for (int i = 0; i < 10; i++) {
          emitter.send("Event " + i);
          sleep(1);
      }
      emitter.complete();
  });
  return emitter;
}

WebFlux（响应式 SSE）
java
复制

@GetMapping(value = "/stream", produces = TEXT_EVENT_STREAM_VALUE)
public Flux<ServerSentEvent<String>> stream() {
  return Flux.interval(Duration.ofSeconds(1))
             .map(seq -> ServerSentEvent.builder("Event " + seq).build());
}

四、选型建议

选择 SseEmitter 的情况：
- 项目基于 Spring MVC，且无需高并发（如内部管理系统）。
- 需精确控制连接生命周期（如动态关闭指定用户的推送）。
选择 WebFlux 的情况：
- 高并发、低延迟场景（如金融行情、万人聊天室）。
- 已采用响应式生态（如 Spring Data Reactive、R2DBC）。

五、总结

SseEmitter 和 Spring WebFlux 分别代表了 SSE 实现的两种范式：同步控制与响应式自动化。在微服务架构中，可结合两者优势——WebFlux 处理主流数据流，SseEmitter 补充定向推送需求。对于新项目，优先采用 WebFlux 以拥抱响应式编程的高效与简洁。

Web & Webflux

传统的spring-boot-starter-web，它的架构组合【spring-webmvc + Servlet + Tomcat】命令式的、同步阻塞的响应式spring-boot-starter-webflux框架，它的架构组合【spring-webflux + Reactor + Netty】响应式的、异步非阻塞的

在配置文件（如application.properties或application.yml）中，添加以下属性：

spring.main.web-application-type = reactive

它有两个可选值：

SERVLET：表示将应用程序配置为使用传统的Servlet API和阻塞I/O操作的Web堆栈。这是默认值，适用于大多数传统的Spring MVC应用程序。

REACTIVE：表示将应用程序配置为使用Reactive编程模型和非阻塞I/O操作的Web堆栈。这适用于使用Spring WebFlux构建的响应式应用程序。

APIFox与SSE

https://docs.apifox.com/5219195m0

https://developer.mozilla.org/zh-CN/docs/Web/API/Server-sent_events/Using_server-sent_events

同时使用MVC 和 Reactor

pom.xml中依赖如下：

 <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
            <exclusions>
                <!-- 排除默认的 Netty 服务器 -->
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-reactor-netty</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>io.projectreactor</groupId>
            <artifactId>reactor-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- 添加 Tomcat 服务器（支持响应式） -->
<!--        <dependency>-->
<!--            <groupId>org.springframework.boot</groupId>-->
<!--            <artifactId>spring-boot-starter-tomcat</artifactId>-->
<!--        </dependency>-->

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

可以看到，同时引入了webflux 和 webmvc的依赖。

他们分别对应以下的自动配置类：

*WebMvcAutoConfiguration*：当检测到 Servlet API 时激活
*WebFluxAutoConfiguration*：当检测到 Reactor 依赖时激活

当同时存在webflux 和 webmvc的依赖，默认是启用webmvc，禁用webflux。

但是，虽然禁用了webflux，当时sse，还是可以正常使用的。controller中写法如下：

package com.wp.webfluxdemo.controller;

import com.wp.webfluxdemo.entity.CountryCity;
import com.wp.webfluxdemo.entity.CountryCityBuilder;
import org.springframework.http.MediaType;
import org.springframework.http.codec.ServerSentEvent;
import org.springframework.web.bind.annotation.*;
import reactor.core.publisher.Flux;

import java.time.Duration;
import java.time.LocalTime;
import java.util.List;
import java.util.concurrent.atomic.AtomicInteger;

@RequestMapping("/flux/first")
@RestController
public class FirstController {

    @RequestMapping(value = "/getJson", method = RequestMethod.GET)
    @ResponseBody
    public List<CountryCity> getJson() {
        CountryCity chinaCity = CountryCityBuilder.create().withCountry("china")
                .withCities(List.of("Beijing", "Shanghai", "ShenZhen", "Guangdong","Nanjing")).build();
        CountryCity americanCity = CountryCityBuilder.create().withCountry("american")
                .withCities(List.of("newyork", "Los Angeles", "Chicago")).build();
        return List.of(chinaCity,americanCity);
    }

    @RequestMapping(value = "/getCityByCountry/{country}", method = RequestMethod.GET)
    public Flux<String> getAlphaLevelCitys(@PathVariable("country") String country) {
        System.out.println("input param:"+country);
        Flux<String> flux = Flux.just("Beijing", "Shanghai", "ShenZhen", "Guangdong");
        return flux;
    }

    @GetMapping(value = "/getCountryCitys")
    public Flux<CountryCity> getCountryCitys() {
        CountryCity chinaCity = CountryCityBuilder.create().withCountry("china")
                .withCities(List.of("Beijing", "Shanghai", "ShenZhen", "Guangdong")).build();
        CountryCity americanCity = CountryCityBuilder.create().withCountry("american")
                .withCities(List.of("newyork", "Los Angeles", "Chicago")).build();
        Flux<CountryCity> flux = Flux.just(chinaCity, americanCity);
        return flux;
    }

    @GetMapping(value = "/sse",produces = MediaType.TEXT_EVENT_STREAM_VALUE)
    public Flux<ServerSentEvent<String>> sse() {
        return Flux.interval(Duration.ofSeconds(1))
                .map(sequence -> ServerSentEvent.<String>builder()
                        .id(String.valueOf(sequence))
                        .event("periodic-event")
                        .data("Current time: " + LocalTime.now())
                        .build()).take(5);
    }
}

可以看到，原来的mvc json，添加了一个 @ResponseBody注解，就可以正常使用了。

而对于SSE，只需要指定 produces = MediaType.TEXT_EVENT_STREAM_VALUE，就可以正常使用了。

原理如下：

当添加了 @ResponseBody注解后，对于返回值，采用的是RequestResponseBodyMethodProcessor；

当指定 produces = MediaType.TEXT_EVENT_STREAM_VALUE，采用的是ResponseBodyEmitterReturnValueHandler。

调用栈如下：

org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter#invokeHandlerMethod
--->
org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod#invokeAndHandle
--->
org.springframework.web.method.support.HandlerMethodReturnValueHandlerComposite#handleReturnValue
--->
org.springframework.web.method.support.HandlerMethodReturnValueHandlerComposite#selectHandler

RAG

https://docs.spring.io/spring-ai/reference/api/retrieval-augmented-generation.html

Advisor

QuestionAnswerAdvisor

RetrievalAugmentationAdvisor

Pre-Retrieval： processing the user query to achieve the best possible retrieval results.

Query Transformation：transforming the input query to make it more effective for retrieval
- CompressionQueryTransformer
- RewriteQueryTransformer
- TranslationQueryTransformer
Query Expansion： expanding the input query into a list of queries,breaking down complex problems into simpler sub-queries.
- MultiQueryExpander

Retrieval：querying data systems like vector store and retrieving the most relevant documents.

Document Search： responsible for retrieving Documents from an underlying data source, such as a search engine, a vector store, a database, or a knowledge graph
- VectorStoreDocumentRetriever
Document Join：combining documents retrieved based on multiple queries and from multiple data sources into a single collection of documents
- ConcatenationDocumentJoiner

Post-Retrieval：responsible for processing the retrieved documents to achieve the best possible generation results.

Document Ranking：ordering and ranking documents based on their relevance to a query to bring the most relevant documents to the top of the list
Document Selection： removing irrelevant or redundant documents from a list of retrieved documents
Document Compression：compressing the content of each document to reduce noise and redundancy in the retrieved information

Generation：responsible for generating the final response based on the user query and retrieved documents.

Query Augmentation：augmenting an input query with additional data, useful to provide a large language model with the necessary context to answer the user query
- ContextualQueryAugmenter

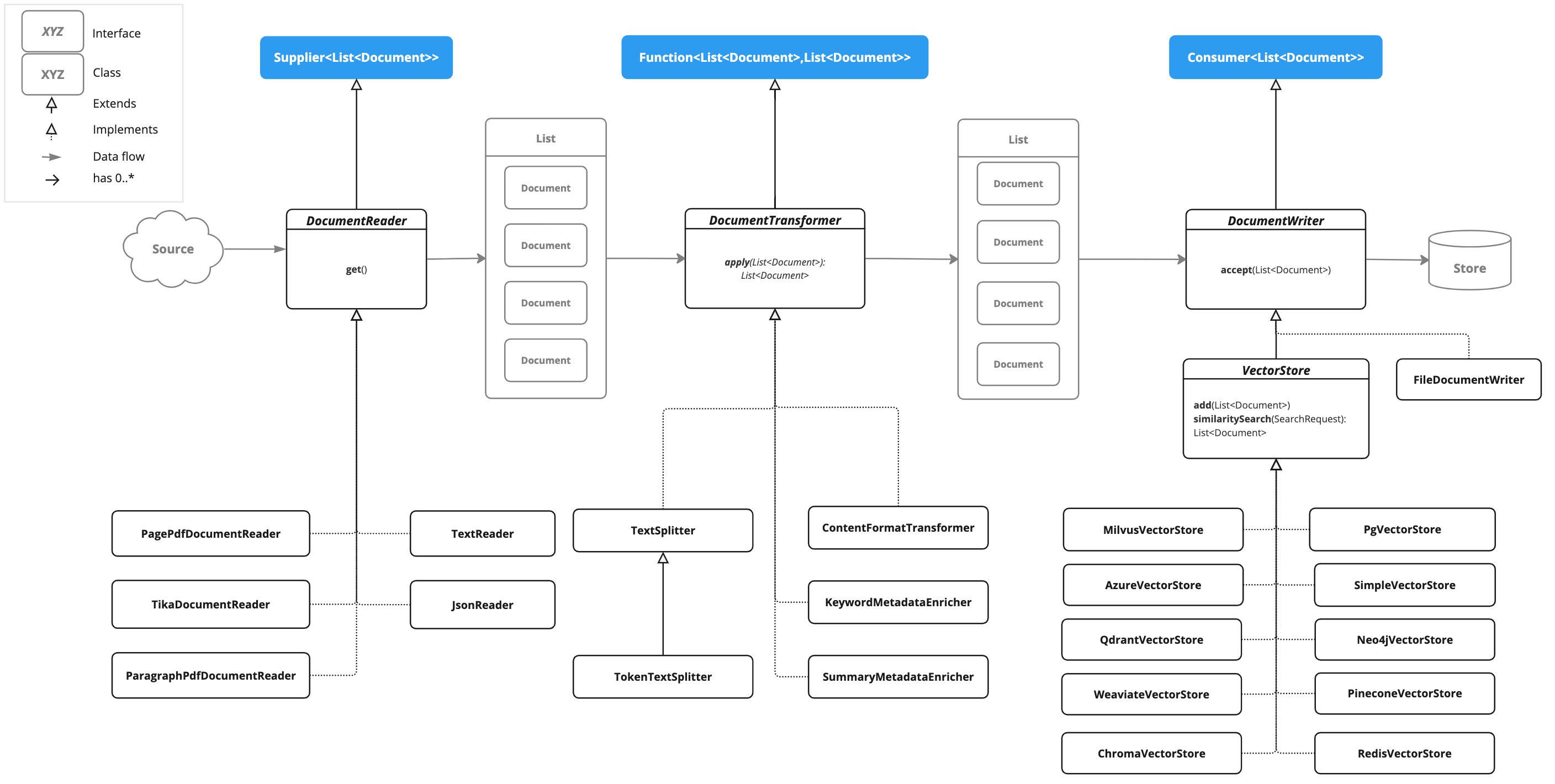

ETL Pipeline

https://docs.spring.io/spring-ai/reference/api/etl-pipeline.html

There are three main components of the ETL pipeline,

DocumentReader that implements Supplier<List<Document>>
DocumentTransformer that implements Function<List<Document>, List<Document>>
DocumentWriter that implements Consumer<List<Document>>

DocumentReader

Provides a source of documents from diverse origins.

public interface DocumentReader extends Supplier<List<Document>> {

    default List<Document> read() {
        return get();
    }
}

主要有以下可用组件：

JsonReader
TextReader
JsoupDocumentReader
MarkdownDocumentReader
PagePdfDocumentReader
ParagraphPdfDocumentReader
TikaDocumentReader

DocumentTransformer

Transforms a batch of documents as part of the processing workflow.

public interface DocumentTransformer extends Function<List<Document>, List<Document>> {

    default List<Document> transform(List<Document> transform) {
        return apply(transform);
    }
}

主要有以下可用组件：

TextSplitter
TokenTextSplitter
ContentFormatTransformer
KeywordMetadataEnricher
SummaryMetadataEnricher

DocumentWriter

Manages the final stage of the ETL process, preparing documents for storage.

public interface DocumentWriter extends Consumer<List<Document>> {

    default void write(List<Document> documents) {
        accept(documents);
    }
}

主要有以下可用组件：

FileDocumentWriter
VectorStoreDocumentWriter

Vector DB

https://docs.spring.io/spring-ai/reference/api/vectordbs.html

Batching Strategy

When working with vector stores, it’s often necessary to embed large numbers of documents. While it might seem straightforward to make a single call to embed all documents at once, this approach can lead to issues. Embedding models process text as tokens and have a maximum token limit, often referred to as the context window size. This limit restricts the amount of text that can be processed in a single embedding request. Attempting to embed too many tokens in one call can result in errors or truncated embeddings.

To address this token limit, Spring AI implements a batching strategy. This approach breaks down large sets of documents into smaller batches that fit within the embedding model’s maximum context window. Batching not only solves the token limit issue but can also lead to improved performance and more efficient use of API rate limits.

Spring AI provides this functionality through the BatchingStrategy interface, which allows for processing documents in sub-batches based on their token counts.

The core BatchingStrategy interface is defined as follows:

public interface BatchingStrategy {
    List<List<Document>> batch(List<Document> documents);
}

This interface defines a single method, batch, which takes a list of documents and returns a list of document batches.

Default Implementation

Spring AI provides a default implementation called TokenCountBatchingStrategy. This strategy batches documents based on their token counts, ensuring that each batch does not exceed a calculated maximum input token count.

Key features of TokenCountBatchingStrategy:

Uses OpenAI’s max input token count (8191) as the default upper limit.
Incorporates a reserve percentage (default 10%) to provide a buffer for potential overhead.
Calculates the actual max input token count as: actualMaxInputTokenCount = originalMaxInputTokenCount * (1 - RESERVE_PERCENTAGE)

The strategy estimates the token count for each document, groups them into batches without exceeding the max input token count, and throws an exception if a single document exceeds this limit.

You can also customize the TokenCountBatchingStrategy to better suit your specific requirements. This can be done by creating a new instance with custom parameters in a Spring Boot @Configuration class.

Here’s an example of how to create a custom TokenCountBatchingStrategy bean:

@Configuration
public class EmbeddingConfig {
    @Bean
    public BatchingStrategy customTokenCountBatchingStrategy() {
        return new TokenCountBatchingStrategy(
            EncodingType.CL100K_BASE,  // Specify the encoding type
            8000,                      // Set the maximum input token count
            0.1                        // Set the reserve percentage
        );
    }
}

In this configuration:

EncodingType.CL100K_BASE: Specifies the encoding type used for tokenization. This encoding type is used by the JTokkitTokenCountEstimator to accurately estimate token counts.
8000: Sets the maximum input token count. This value should be less than or equal to the maximum context window size of your embedding model.
0.1: Sets the reserve percentage. The percentage of tokens to reserve from the max input token count. This creates a buffer for potential token count increases during processing.

By default, this constructor uses Document.DEFAULT_CONTENT_FORMATTER for content formatting and MetadataMode.NONE for metadata handling. If you need to customize these parameters, you can use the full constructor with additional parameters.

Once defined, this custom TokenCountBatchingStrategy bean will be automatically used by the EmbeddingModel implementations in your application, replacing the default strategy.

The TokenCountBatchingStrategy internally uses a TokenCountEstimator (specifically, JTokkitTokenCountEstimator) to calculate token counts for efficient batching. This ensures accurate token estimation based on the specified encoding type.

Additionally, TokenCountBatchingStrategy provides flexibility by allowing you to pass in your own implementation of the TokenCountEstimator interface. This feature enables you to use custom token counting strategies tailored to your specific needs. For example:

TokenCountEstimator customEstimator = new YourCustomTokenCountEstimator();
TokenCountBatchingStrategy strategy = new TokenCountBatchingStrategy(
        this.customEstimator,
    8000,  // maxInputTokenCount
    0.1,   // reservePercentage
    Document.DEFAULT_CONTENT_FORMATTER,
    MetadataMode.NONE
);

Custom Implementation

While TokenCountBatchingStrategy provides a robust default implementation, you can customize the batching strategy to fit your specific needs. This can be done through Spring Boot’s auto-configuration.

To customize the batching strategy, define a BatchingStrategy bean in your Spring Boot application:

@Configuration
public class EmbeddingConfig {
    @Bean
    public BatchingStrategy customBatchingStrategy() {
        return new CustomBatchingStrategy();
    }
}

This custom BatchingStrategy will then be automatically used by the EmbeddingModel implementations in your application.

Example Usage

To compute the embeddings for a vector database, you need to pick an embedding model that matches the higher-level AI model being used.

For example, with OpenAI’s ChatGPT, we use the OpenAiEmbeddingModel and a model named text-embedding-ada-002.

The Spring Boot starter’s auto-configuration for OpenAI makes an implementation of EmbeddingModel available in the Spring application context for dependency injection.

The general usage of loading data into a vector store is something you would do in a batch-like job, by first loading data into Spring AI’s Document class and then calling the save method.

Given a String reference to a source file that represents a JSON file with data we want to load into the vector database, we use Spring AI’s JsonReader to load specific fields in the JSON, which splits them up into small pieces and then passes those small pieces to the vector store implementation. The VectorStore implementation computes the embeddings and stores the JSON and the embedding in the vector database:

  @Autowired
  VectorStore vectorStore;

  void load(String sourceFile) {
            JsonReader jsonReader = new JsonReader(new FileSystemResource(sourceFile),
                    "price", "name", "shortDescription", "description", "tags");
            List<Document> documents = jsonReader.get();
            this.vectorStore.add(documents);
  }

Later, when a user question is passed into the AI model, a similarity search is done to retrieve similar documents, which are then "'stuffed'" into the prompt as context for the user’s question.

   String question = <question from user>
   List<Document> similarDocuments = store.similaritySearch(this.question);

Additional options can be passed into the similaritySearch method to define how many documents to retrieve and a threshold of the similarity search.

Metadata Filters

This section describes various filters that you can use against the results of a query.

Filter String

You can pass in an SQL-like filter expressions as a String to one of the similaritySearch overloads.

Consider the following examples:

"country == 'BG'"
"genre == 'drama' && year >= 2020"
"genre in ['comedy', 'documentary', 'drama']"

Filter.Expression

You can create an instance of Filter.Expression with a FilterExpressionBuilder that exposes a fluent API. A simple example is as follows:

FilterExpressionBuilder b = new FilterExpressionBuilder();
Expression expression = this.b.eq("country", "BG").build();

You can build up sophisticated expressions by using the following operators:

EQUALS: '=='
MINUS : '-'
PLUS: '+'
GT: '>'
GE: '>='
LT: '<'
LE: '<='
NE: '!='

You can combine expressions by using the following operators:

AND: 'AND' | 'and' | '&&';
OR: 'OR' | 'or' | '||';

Considering the following example:

Expression exp = b.and(b.eq("genre", "drama"), b.gte("year", 2020)).build();

You can also use the following operators:

IN: 'IN' | 'in';
NIN: 'NIN' | 'nin';
NOT: 'NOT' | 'not';

Consider the following example:

Expression exp = b.and(b.in("genre", "drama", "documentary"), b.not(b.lt("year", 2020))).build();

Deleting Documents from Vector Store

The Vector Store interface provides multiple methods for deleting documents, allowing you to remove data either by specific document IDs or using filter expressions.

Delete by Document IDs

The simplest way to delete documents is by providing a list of document IDs:

void delete(List<String> idList);

This method removes all documents whose IDs match those in the provided list. If any ID in the list doesn’t exist in the store, it will be ignored.

// Create and add document
Document document = new Document("The World is Big",
    Map.of("country", "Netherlands"));
vectorStore.add(List.of(document));

// Delete document by ID
vectorStore.delete(List.of(document.getId()));

Delete by Filter Expression

For more complex deletion criteria, you can use filter expressions:

void delete(Filter.Expression filterExpression);

This method accepts a Filter.Expression object that defines the criteria for which documents should be deleted. It’s particularly useful when you need to delete documents based on their metadata properties.

// Create test documents with different metadata
Document bgDocument = new Document("The World is Big",
    Map.of("country", "Bulgaria"));
Document nlDocument = new Document("The World is Big",
    Map.of("country", "Netherlands"));

// Add documents to the store
vectorStore.add(List.of(bgDocument, nlDocument));

// Delete documents from Bulgaria using filter expression
Filter.Expression filterExpression = new Filter.Expression(
    Filter.ExpressionType.EQ,
    new Filter.Key("country"),
    new Filter.Value("Bulgaria")
);
vectorStore.delete(filterExpression);

// Verify deletion with search
SearchRequest request = SearchRequest.builder()
    .query("World")
    .filterExpression("country == 'Bulgaria'")
    .build();
List<Document> results = vectorStore.similaritySearch(request);
// results will be empty as Bulgarian document was deleted

Delete by String Filter Expression

For convenience, you can also delete documents using a string-based filter expression:

void delete(String filterExpression);

This method converts the provided string filter into a Filter.Expression object internally. It’s useful when you have filter criteria in string format.

// Create and add documents
Document bgDocument = new Document("The World is Big",
    Map.of("country", "Bulgaria"));
Document nlDocument = new Document("The World is Big",
    Map.of("country", "Netherlands"));
vectorStore.add(List.of(bgDocument, nlDocument));

// Delete Bulgarian documents using string filter
vectorStore.delete("country == 'Bulgaria'");

// Verify remaining documents
SearchRequest request = SearchRequest.builder()
    .query("World")
    .topK(5)
    .build();
List<Document> results = vectorStore.similaritySearch(request);
// results will only contain the Netherlands document

Error Handling When Calling the Delete API

All deletion methods may throw exceptions in case of errors:

The best practice is to wrap delete operations in try-catch blocks:

try {
    vectorStore.delete("country == 'Bulgaria'");
}
catch (Exception  e) {
    logger.error("Invalid filter expression", e);
}

Document Versioning Use Case

A common scenario is managing document versions where you need to upload a new version of a document while removing the old version. Here’s how to handle this using filter expressions:

// Create initial document (v1) with version metadata
Document documentV1 = new Document(
    "AI and Machine Learning Best Practices",
    Map.of(
        "docId", "AIML-001",
        "version", "1.0",
        "lastUpdated", "2024-01-01"
    )
);

// Add v1 to the vector store
vectorStore.add(List.of(documentV1));

// Create updated version (v2) of the same document
Document documentV2 = new Document(
    "AI and Machine Learning Best Practices - Updated",
    Map.of(
        "docId", "AIML-001",
        "version", "2.0",
        "lastUpdated", "2024-02-01"
    )
);

// First, delete the old version using filter expression
Filter.Expression deleteOldVersion = new Filter.Expression(
    Filter.ExpressionType.AND,
    Arrays.asList(
        new Filter.Expression(
            Filter.ExpressionType.EQ,
            new Filter.Key("docId"),
            new Filter.Value("AIML-001")
        ),
        new Filter.Expression(
            Filter.ExpressionType.EQ,
            new Filter.Key("version"),
            new Filter.Value("1.0")
        )
    )
);
vectorStore.delete(deleteOldVersion);

// Add the new version
vectorStore.add(List.of(documentV2));

// Verify only v2 exists
SearchRequest request = SearchRequest.builder()
    .query("AI and Machine Learning")
    .filterExpression("docId == 'AIML-001'")
    .build();
List<Document> results = vectorStore.similaritySearch(request);
// results will contain only v2 of the document

You can also accomplish the same using the string filter expression:

// Delete old version using string filter
vectorStore.delete("docId == 'AIML-001' AND version == '1.0'");

// Add new version
vectorStore.add(List.of(documentV2));

Model Context Protocol (MCP)

https://docs.spring.io/spring-ai/reference/api/mcp/mcp-overview.html

https://mcp-docs.cn/docs/concepts/sampling

The Model Context Protocol (MCP) is a standardized protocol that enables AI models to interact with external tools and resources in a structured way. It supports multiple transport mechanisms to provide flexibility across different environments.

The MCP Java SDK provides a Java implementation of the Model Context Protocol, enabling standardized interaction with AI models and tools through both synchronous and asynchronous communication patterns.

**Spring AI MCP** extends the MCP Java SDK with Spring Boot integration, providing both client and server starters. Bootstrap your AI applications with MCP support using Spring Initializer.

什么是MCP

https://zhuanlan.zhihu.com/p/29001189476

MCP server和client二者各自的角色以及发挥的作用：

https://blog.csdn.net/weixin_41712499/article/details/147583129

LLM的Tool Callback与MCP的区别

1. 核心定位与功能

Tool Callback
- 定位：模型层面的功能调用机制，用于LLM动态生成结构化请求（如JSON）以调用外部工具（如API、数据库）。
- 功能：解决单次工具调用需求，例如查询天气、执行计算等，依赖开发者预先定义工具接口，并由模型生成调用指令。
- 示例：用户问“北京天气如何？”时，LLM生成 {"tool": "get_weather", "params": {"city": "北京"}}，触发工具执行后整合结果回复用户。
MCP（Model Context Protocol）
- 定位：应用层的标准化协议，充当LLM与外部工具/数据源之间的通用接口，支持工具调用、动态上下文管理及多源数据集成。
- 功能：提供统一接口，允许LLM通过MCP服务器访问任意兼容工具，无需为每个工具单独编码集成。
- 示例：用户请求“分析项目代码并生成测试用例”，MCP可同时连接代码仓库、数据库和文档库，动态提取所需上下文。

2. 架构与交互方式

Tool Callback
- 架构：基于LLM与应用之间的直接交互，开发者需为每个工具编写执行逻辑，模型与工具耦合度高。
- 交互流程：用户输入→LLM生成工具调用指令→应用执行工具→结果返回LLM→生成最终回复。
MCP
- 架构：客户端-服务器模式，包含MCP客户端（嵌入LLM应用）、MCP服务器（管理工具调用）和数据源。
- 交互流程：用户输入→LLM生成MCP请求→MCP客户端转发至服务器→服务器调用工具并返回结果→LLM整合结果回复。
- 扩展性：支持动态发现工具（如自动识别新增的MCP服务器）和双向通信（服务器可反向调用LLM能力）。

3. 标准化与兼容性

Tool Callback
- 标准化程度低：不同模型（如GPT-4、Claude）的调用格式、参数结构不统一，需针对各平台适配。
- 依赖特定模型：例如OpenAI的Function Calling仅适用于其API，切换模型需重写代码。
MCP
- 标准化协议：基于JSON-RPC 2.0定义统一消息格式，支持HTTP/2、WebSocket等传输方式，兼容任意模型。
- 工具即插即用：任何符合MCP协议的服务器均可被动态接入，例如GitHub、Slack等系统已支持MCP接口。

4. 安全性与控制

Tool Callback
- 权限控制弱：工具调用权限由应用直接管理，可能因模型误判导致高危操作（如删除文件）。
- 上下文受限：仅处理单次工具调用，缺乏跨工具的上下文关联（如无法在调用数据库后自动触发邮件通知）。
MCP
- 精细化权限：用户需逐项授权工具调用，且MCP服务器可隔离敏感数据（如医疗记录仅本地访问）。
- 动态上下文管理：支持跨工具的数据传递（如将数据库查询结果自动注入后续代码生成任务）。

5. 应用场景对比

Tool Callback适用场景
- 简单工具扩展（如天气查询、计算器）。
- 封闭环境下的轻量级集成（如内部知识库调用）。
MCP适用场景
- 复杂系统集成（如同时连接本地文件、Jira API和云服务）。
- 敏感数据处理（如医疗场景中隔离患者数据）。
- 多Agent协作（如多个AI代理通过MCP共享工具和上下文）。

总结

维度	Tool Callback	MCP
核心目标	单次工具调用	多工具/数据源标准化集成
标准化程度	依赖模型平台	协议统一，模型无关
架构复杂度	简单（直接调用）	复杂（客户端-服务器架构）
扩展性	有限（需硬编码新工具）	高（动态发现工具）
安全性	依赖应用层控制	内置权限管理、数据隔离
适用场景	轻量级任务	企业级复杂系统

选择建议：

若需快速实现简单工具调用，优先使用Tool Callback。
若构建跨平台、多工具协作的复杂AI系统，MCP是更优解。

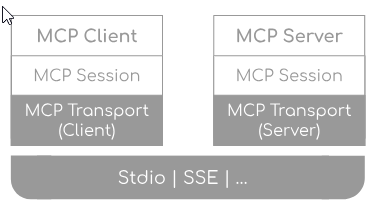

MCP Java SDK Architecture

The Java MCP implementation follows a three-layer architecture:

Client/Server Layer: The McpClient handles client-side operations while the McpServer manages server-side protocol operations. Both utilize McpSession for communication management.
Session Layer (McpSession): Manages communication patterns and state through the DefaultMcpSession implementation.
Transport Layer (McpTransport): Handles JSON-RPC message serialization and deserialization with support for multiple transport implementations.

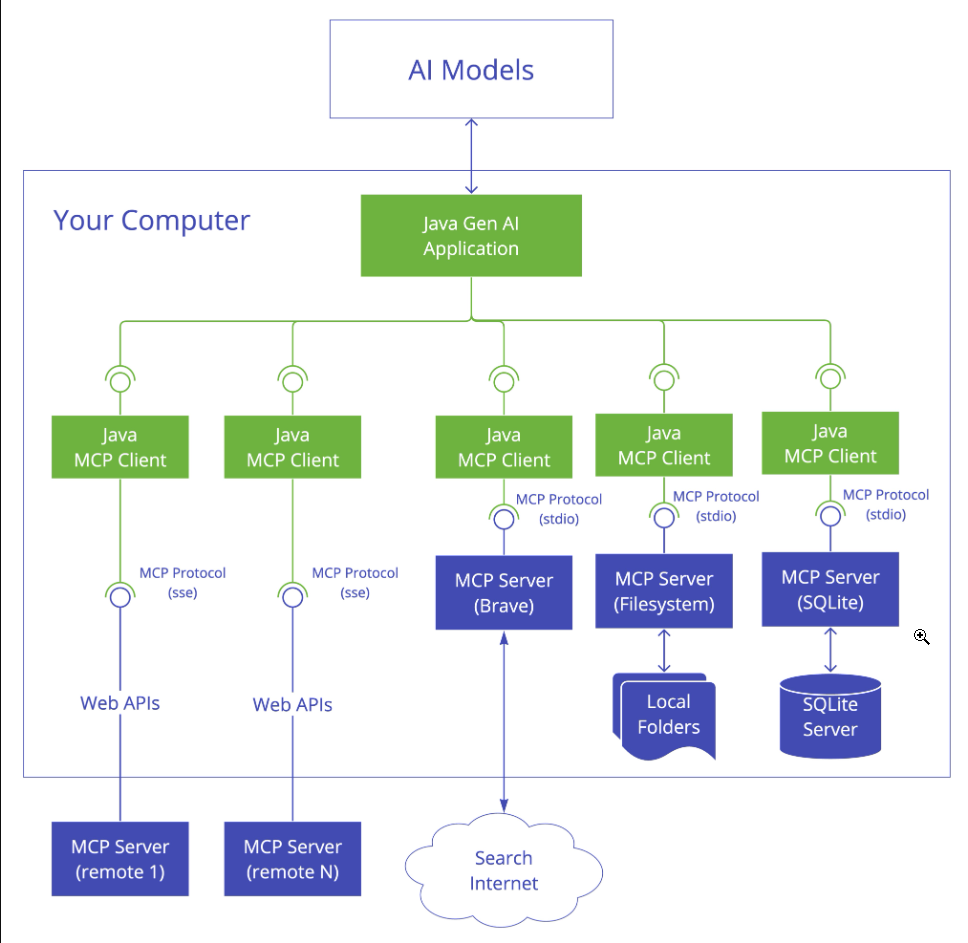

MCP Client

The MCP Client is a key component in the Model Context Protocol (MCP) architecture, responsible for establishing and managing connections with MCP servers. It implements the client-side of the protocol, handling:

Protocol version negotiation to ensure compatibility with servers
Capability negotiation to determine available features
Message transport and JSON-RPC communication
Tool discovery and execution
Resource access and management
Prompt system interactions
Optional features:
- Roots management
- Sampling support
Synchronous and asynchronous operations
Transport options:
- Stdio-based transport for process-based communication
- Java HttpClient-based SSE client transport
- WebFlux SSE client transport for reactive HTTP streaming

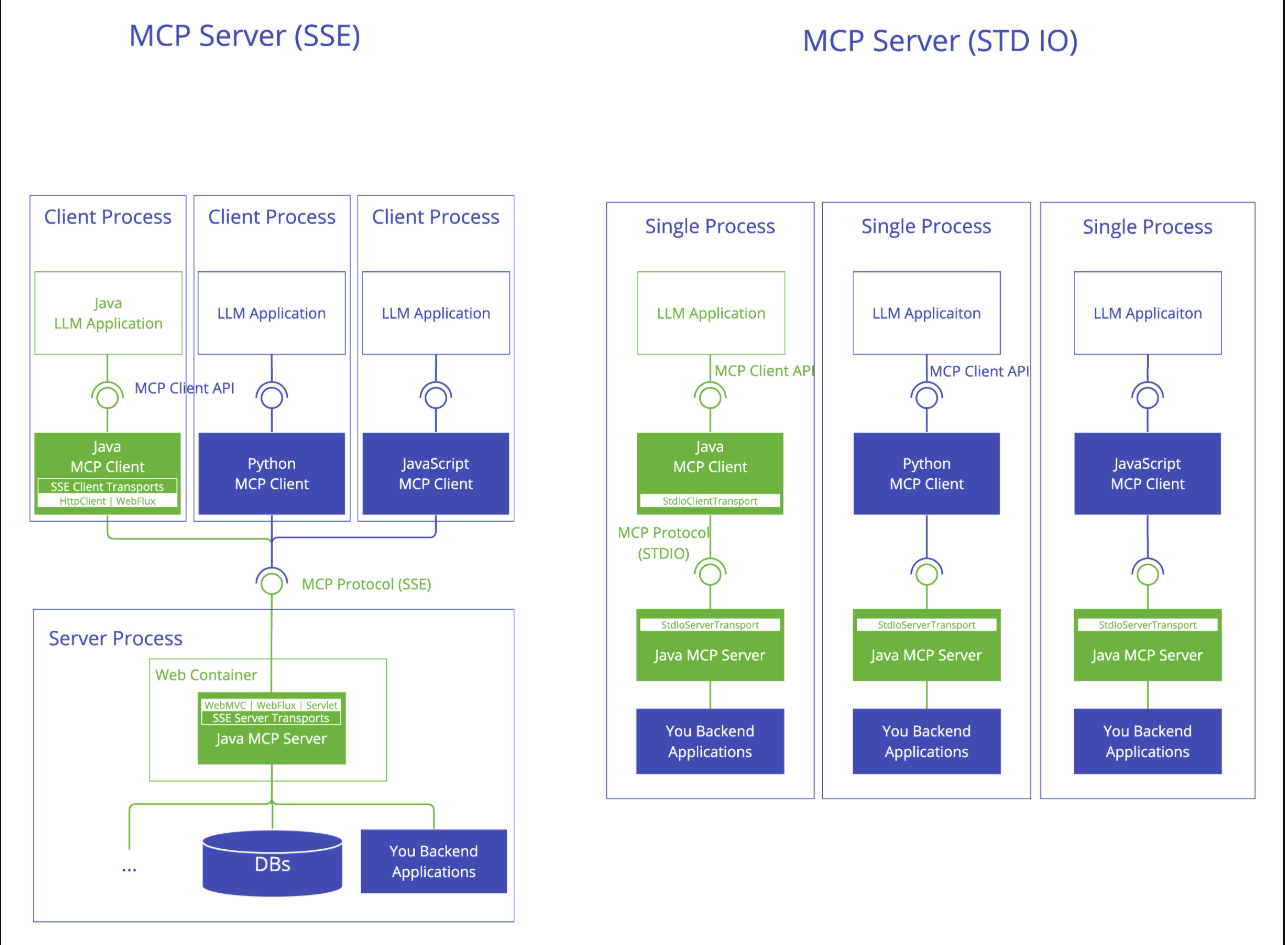

MCP Server

The MCP Server is a foundational component in the Model Context Protocol (MCP) architecture that provides tools, resources, and capabilities to clients. It implements the server-side of the protocol, responsible for:

Server-side protocol operations implementation
- Tool exposure and discovery
- Resource management with URI-based access
- Prompt template provision and handling
- Capability negotiation with clients
- Structured logging and notifications
Concurrent client connection management
Synchronous and Asynchronous API support
Transport implementations:
- Stdio-based transport for process-based communication
- Servlet-based SSE server transport
- WebFlux SSE server transport for reactive HTTP streaming
- WebMVC SSE server transport for servlet-based HTTP streaming

MCP Java SDK

https://modelcontextprotocol.io/sdk/java/mcp-overview

Spring AI MCP Integration

Spring AI provides MCP integration through the following Spring Boot starters:

Client Starters

spring-ai-starter-mcp-client - Core starter providing STDIO and HTTP-based SSE support
spring-ai-starter-mcp-client-webflux - WebFlux-based SSE transport implementation

Server Starters

spring-ai-starter-mcp-server - Core server with STDIO transport support
spring-ai-starter-mcp-server-webmvc - Spring MVC-based SSE transport implementation
spring-ai-starter-mcp-server-webmvc - 基于 Spring MVC 的 SSE 传输实现

MCP Client Boot Starter

https://docs.spring.io/spring-ai/reference/api/mcp/mcp-client-boot-starter-docs.html

MCP Server Boot Starter

https://docs.spring.io/spring-ai/reference/api/mcp/mcp-server-boot-starter-docs.html

sse-message-endpoint & sse-endpoint

spring ai mcp中，sse-message-endpoint 和 sse-endpoint，分别是什么作用？

在 Spring AI MCP 协议中，sse-message-endpoint 和 sse-endpoint 是两种不同传输层实现的 SSE（Server-Sent Events）端点配置，其作用和应用场景如下：

1. sse-message-endpoint

作用：
这是 WebMVC 传输层（基于传统 Servlet 架构）的默认 SSE 消息端点，用于处理客户端与服务器之间的消息交互。客户端通过此端点向服务器发送请求，并通过 SSE 流接收响应。
配置方式：
在 application.yml 中通过 spring.ai.mcp.server.sse-message-endpoint 自定义路径。
典型场景：
适用于 Spring MVC 实现的同步或异步服务器，例如传统 Web 应用需要向浏览器前端推送实时数据。例如，前端 JavaScript 使用 EventSource 监听此端点接收消息流。

示例：
yaml
复制

spring:
  ai:
    mcp:
      server:
        sse-message-endpoint: /custom/messages  # 自定义路径

2. sse-endpoint

作用：
这是 WebFlux 传输层（基于响应式编程模型）的默认 SSE 端点，用于建立服务器与客户端的 SSE 长连接。客户端通过此端点初始化 SSE 流并持续接收服务器推送的事件。
配置方式：
通过 spring.ai.mcp.server.sse-endpoint 配置，默认路径为 /sse。
典型场景：
适用于高并发、非阻塞的响应式应用（如实时消息推送服务），利用 Project Reactor 的 Flux 和 Mono 处理数据流。例如，客户端通过 GET 请求连接此端点建立 SSE 通道。

示例：
yaml
复制

spring:
  ai:
    mcp:
      server:
        sse-endpoint: /custom/sse  # 自定义路径

关键区别

特性	sse-message-endpoint	sse-endpoint
传输层实现	WebMVC（同步/阻塞）	WebFlux（异步/非阻塞）
主要用途	客户端发送请求并接收消息流	初始化 SSE 流并持续接收事件
默认路径	`/mcp/message`	`/sse`
适用场景	传统 Web 应用的实时交互	高并发、响应式应用（如实时推送）

实际开发中的选择建议

WebMVC 项目：优先使用 sse-message-endpoint，通过 POST 请求发送消息，前端监听此端点获取响应流。
WebFlux 项目：使用 sse-endpoint 建立长连接，结合响应式编程模型提升吞吐量。
兼容性注意：在 MCP 协议升级（如 Streamable HTTP）后，部分端点可能被统一为 /mcp，需结合最新文档调整。

通过合理配置这两个端点，开发者可以灵活实现不同场景下的实时通信需求。

spring.ai.mcp.client.toolcallback.enabled

spring.ai.mcp.client.toolcallback.enabled，这个配置项的作用是，自动的，将mcpclient实例转为toolcallback，然后将这些工具描述信息，提供给大模型，供大模型根据需要自行挑选需要的toolcallback。

Function Calling

https://api-docs.deepseek.com/zh-cn/guides/function_calling/

https://xie.infoq.cn/article/c17e6dbaa9af5a17cb7500298

Function Calling 让模型能够调用外部工具，来增强自身能力。

MCP是一种机制，来构建跨模型的Function Calling。

通过实测，得出，deepseek v3是支持Function Calling。但是deepseek r1，不支持Function Calling

文章作者：Administrator

文章链接：http://localhost:8090//archives/spring-ai-note

小鹿记录

Spring AI Note

Reference

Concept

temperature & top_p

temperature

top_p

总结：

Token Size limit

Official Sample

构建start-demo

逻辑和概念梳理

ChatClient

Advisors

Advisor Configuration in ChatClient

Chat Memory

Logging

Structured Output Converter

StructuredOutputConverter

Available Converters

Using Converters

Bean Output Converter

Java class Bean

Generic Bean Types

Map Output Converter

List Output Converter

DeepSeek原生接口

一、主要响应字段

二、特殊场景字段

三、参数关联字段

示例解析

流式输出

SSE Protocol

Event stream format

Fields

Examples

Data-only messages

Named events

Mixing and matching

Spring WebFlux 与 SseEmitter

一、技术定位与实现机制

二、核心差异对比

三、协作场景与最佳实践

四、选型建议

五、总结

Web & Webflux

APIFox与SSE

同时使用MVC 和 Reactor

RAG

Advisor

ETL Pipeline

DocumentReader

DocumentTransformer

DocumentWriter

Vector DB

Batching Strategy

Default Implementation

Custom Implementation

Example Usage

Metadata Filters

Filter String

Filter.Expression

Deleting Documents from Vector Store

Delete by Document IDs

Delete by Filter Expression

Delete by String Filter Expression

Error Handling When Calling the Delete API

Document Versioning Use Case

Model Context Protocol (MCP)

什么是MCP

MCP server和client二者各自的角色以及发挥的作用：

LLM的Tool Callback与MCP的区别

LLM的Tool Callback与MCP的区别

1. 核心定位与功能

2. 架构与交互方式

3. 标准化与兼容性

4. 安全性与控制

5. 应用场景对比

总结

MCP Java SDK Architecture
